Hantek PP-80 /PP-150 /PP-250 Oscilloscope Probes 60MHZ 100MHZ 200MHZ 250MHZ Osciloscopio Tester
Hantek PP-80 /PP-150 /PP-250 Oscilloscope Probes 60MHZ 100MHZ 200MHZ 250MHZ Osciloscopio Tester
Performance & Characteristics
● Attenuation ratio: 1× and 10× optional.
● Portable design according with ergonomics.
| Item |
PP-80 |
PP-90 |
PP-150 PP-150B |
PP-200 PP-200B |
| Attenuation | x1 x10 | |||
| Input resistance | 1MΩ: 10MΩ | |||
| Input capacitance | x1: 85pF-115pF x10:18.5pF-22.5pF |
x1: 85pF-115pF x10: 18.5pF-22.5pF |
||
| Compensation scope | 20pF-40pF | 15pF-40pF | 15pF-35pF | |
| System bandwidth | x1:DC-6MHz; x10: DC-60MHz |
x1:DC-6MHz; x10: DC-80MHz |
x1: DC-6MHz x10: DC-100MHz |
x1: DC-6MHz x10: DC-200MHz |
| Input voltage | x1:<200V DC +Peak AC x10: <600V DC +Peak AC |
|||
| weight | 55g | |||
| Cable length | 120cm | |||
| Temperature scope: | Operation: -10℃--+50℃ Not Operation: -20℃--+75℃ |
|||
| Humidity |
≤85% (Relative humidity)
|
|||
Application Fields
● Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
● Measurement in intermediate and low frequency signals.
Order Information
Accessories included by PP series passive voltage rapier
● Operation manual
● Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
● Contractive-type acuminate hook
● 12cm earth wire with alligator clip
● 4 pairs of colorized cable markers
● Locating sleeve adapts to IC testing.

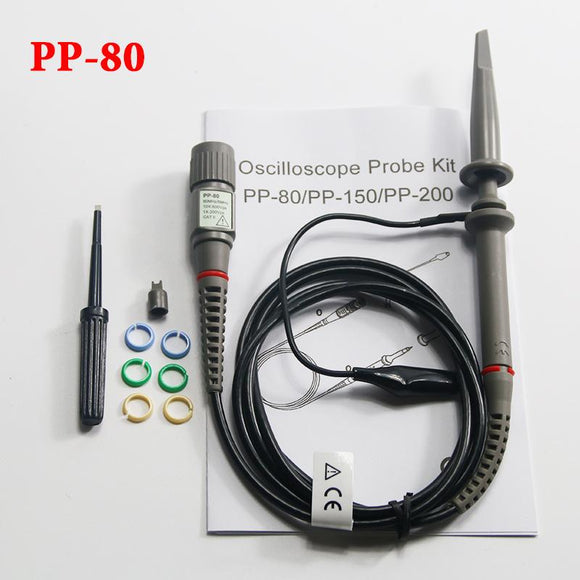

Package including
1 x Oscilloscope Probe
1 x Adjustment Tool
1 x Tip Locating Sleeve
6 x Color Circle(send by random!)
1 x Instruction
