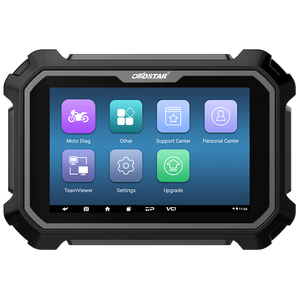

OBDStar MS80 Device Tablet for Motorcycle/PWC/Snow mobile/ATV/UTV Diagnostics

  • $2,599.00
    Unit price per

Only 49 left!
Item No. LI61M55A Weight: 8.5 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

OBDSTAR MS80 Intelligent Motorcycle Diagnostic Tool Support IMMO Function

Description

OBDSTAR MS80 has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system, easy troubleshooting Failure, so you have no worries about the car diagnosis!

OBDSTAR MS80 Highlights:

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Exclusive interactive circuit diagram and electrical description query function, so that you can have a worry-free diagnosis;
3. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
4. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory, etc.

OBDSTAR MS80 Latest Update Information:

MS80 ADIVA V30.00 Update on Mar 16th, 2021:


Brand Model Year System Special Function
ADIVA AD250_Scooter 2005 ENG Throttle position selHeaming Reset self-adapting parameters
  AD250 Scooter 2005 Immobilizer
  AD200 Scooter 2016 ENG CO adjustment


MS80 KVNMOTORS V30.00 Update on Mar 16th, 2021:


Brand Model Year System
KVN MOTORS Yak500 ATV-Quad 2004- ENG
Special Function Throttle position self adapt CO adjustment, Reset self-adapting parameters




OBDSTAR MS80 Functions:


MS80 FUNCTION
Motorcycle IMMO European Area TRIUMPH
GILERA
PEUGEOT
PIAAGIO
DUCATI
VESPA
Americas Area HARLEY
Motorcycle Diagnosis Asian Area HONDA
KAWASAKI
KYMCO
SUZUKI
SYM
YAMAHA
MONTESA
PGO
HARTFORD
AEON
BENELLIDSK
European Area APRILIA
BENELLI
BMW
DUCATI
KTM
PIAGGIO
TRIUMPH
VESPA
MALAGUTI
GASGAS
GILERA
GUZZI
AGUSTA
DERBI
Americas Area HARLEY
INDIAN
VICTORY
BRP
OBD OBD
Motorboat Diagnosis Asian Area HONDABOAT


OBDSTAR MS80 Vs. MS50:


Item MS80 MS50

Diag Cable High Quality,low price High Quality,low price
Main machine 8 inch android tablet 5 inch android tablet,OBD charge
Plastic Cover Industrial Design Industrial Design

Smart switch pin
Highly integrated diagnostic connector Highly integrated diagnostic connector
Diag Connector OBD adapter, no need to disassemble  OBD adapter, no need to disassemble
Operation System Android Android
Wifi one button click one button click
Language English and more local language English and more local language
Remote assistance Yes, engineer can assistant via remote control software Yes, engineer can assistant via remote control software
Motorcycle IMMO European Area TRIUMPH
GILERA
PEUGEOT
PIAAGIO
DUCATI
VESPA
Americas Area HARLEY
Motorcycle Diagnosis Asian Area HONDA
KAWASAKI
KYMCO
SUZUKI
SYM
YAMAHA
MONTESA
PGO
HARTFORD
AEON
BENELLIDSK
European Area APRILIA
BENELLI
BMW
DUCATI
KTM
PIAGGIO
TRIUMPH
VESPA
MALAGUTI
GASGAS
GILERA
GUZZI
AGUSTA
DERBI
Americas Area HARLEY
INDIAN
VICTORY
BRP
OBD OBD-II OBD
Motorboat Diagnosis Asian Area HONDABOAT
Accessories Comparison
M001 Main Cable
M002 Power Cable
M002A  GND
M003A  Multi functional jumper
M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
M005 KAWASAKI
M006  KAWASAKI
M012 SUZUKI
 M015A HONDA/HONDA MONTESA
M018 YAMAHA
M019 KTM
M021 AEON/BENELLI/BENELLI DSK
M026  SYM
M027 KYMCO/KAWASAKI
M028 pgo
M030 HARDFORD
M034 HARLEY-DAVIDSON
M037 DUCATI
M040 BMW
M041 EURO V
M042 INDIAN/VICTORY
M043  BRP
P001 IMMO KIT(Optional)
12V2A CHARGER
Support system 1. Comparable to the original factory

2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems
1. Comparable to the original factory

2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems
Advanced Function Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.) Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)
Diagnostic connector location
Diagnostic connector Display
Technical Bulletin
Fault Guidance
Data Flow Text/ Waveform Diagram
Instrument Diagram
Any menu back
Interactive Circuit diagram --
Components Description --

Product Parameters

Operation System: Android 5.1.1
CPU: Exynos4418  Dual Core
ARM Cortex A9
Battery: 3700mA, rechargeable polymer lithium battery
Extension memory card:
32G Micro SD (TF) card supported
Storage capacity: 32GB
LCD:8.0 inch
LCD resolution: 1280*800
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature:  -10℃~55℃(14℉~131℉)
Storage temperature:  -20℃~70℃(-4℉~158℉)
Weight:  1kg(Main Unit)
Dimension: 254mm*174*mm*35mm

Package includes:

1pc x M001         Main Cable
1pc x M002         Power Cable
1pcxM002A       GND
1pc x M003A       Multi functional jumper
1pc x M004        APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005         KAWASAKI
1pcx M006         KAWASAKI
1pc x M012         SUZUKI
1pc x M015A      HONDA/HONDA MONTESA
1pc x M018        YAMAHA
1pc x M019        KTM
1pc x M021        AEON/BENELLI/BENELLI DSK
1pc x M026        SYM
1pc x M027        KYMCO/KAWASAKI
1pc x M034        HARLEY-DAVIDSON
1pc x M037        DUCATI
1pcx M040        BMW
1pc x M041        EURO V
1pc x M042        INDIAN/VICTORY
1pcx M043        BRP
1pc x P001         IMMO KIT(Optional)
1pc x 12V2A      CHARGER
