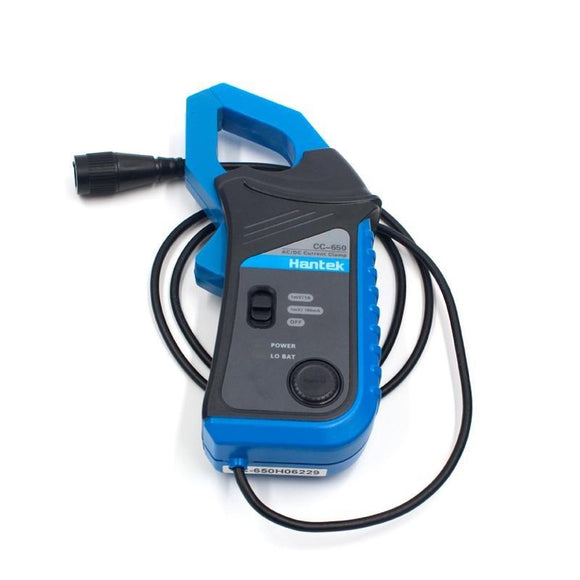

Hantek CC-650 Multimeter AC/DC Clamp Current Electrical Meter Transducer With BNC Connector to Oscilloscope
AC/DC frequency range: up to 400Hz.
Effective measurement range: 20mA to 650A DC.
Allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage.
If connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms.
Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipment measurement.
Efficient Measure Range:
1mV/100mA: 100mA to 20A, Multimeter Range is set to DC or rms AC 200mV
1mV/1A: 1A to 200A, Multimeter Range is set to DC or rms AC 200mV; 200A to 650A, DC or rms AC 2V
DC Current Accuracy: 0 to 650A, +/- (3% reading + 2A )
AC Current Accuracy: 50Hz arrive at 400Hz
Captured Conductor Size: Max. 30mm
Low Battery Indicator: Red LED Lighting
Operating Temperature: 0°C to 50°C 70% RH
Storage Temperature: -20°C to +70°C, 80% RH
Battery Type: 1 * 9V 6F22 Battery (NOT Included)
Output: BNC Plug
Dimensions: 175 * 70 * 33mm / 6.9 * 2.75 * 1.3in
