Hantek 6022BL PC USB Oscilloscope 2 Digital Channels 20MHz Bandwidth 48MSa/s Sample Rate 16 Channels Logic Analyzer
Hantek 6022BL PC USB Oscilloscope 2 Digital Channels 20MHz Bandwidth 48MSa/s Sample Rate 16 Channels Logic Analyzer
Features:
-Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
-USB2.0 interface, no external power source required, easy to use.
-Be suitable for notebook computer, product line maintenance, be used easily on business.
-Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
Specification:
Model |
Hantek6022BL |
Oscilloscope Features |
|
Bandwidth |
20MHz |
Channel |
2(Digital)+16(Logic) |
Sample Rate |
48MSa/s |
Memory Depth |
1M |
Rise Time |
17.5ns |
Time Base Precision |
50ppm |
Time Base Range |
4ns/div-1h/div (Step by1-2-4) |
Input Impendence |
1M 25pF |
Input Sensitivity |
10mV/div-5V/div |
Vertical Resolution |
8Bit |
Vertical Position Range |
10mV ~ 5V/div x1 probe; 100mV ~ 50V/div x10 probe; |
DC Accuracy |
3% |
Bandwidth Limited |
20MHz |
Trigger Type |
Edge, Alternative |
Trigger Source |
CH1, CH2, EXT, EXT/10 |
Math |
+,-,x,÷,FFT, Invert |
Cursor Measurement |
Cross, Trace, Horizontal, Vertical |
Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
Logic Analyzer Features |
|
Channel |
16 |
Max. Impendance |
1M(C=7.5pF) |
Max. Voltage |
0V~5.5V |
Max. Sample |
48M |
Bandwidth |
10MHz |
Compatible Input |
TTL, LVTTL, CMOS |
Memory Depth |
1M/CH |
General Features |
|
Power |
USB Port |
Dimensions |
205mm x120mm x 35mm |
Weight |
0.382KG |
Standard Probe |
2 x PP80 |

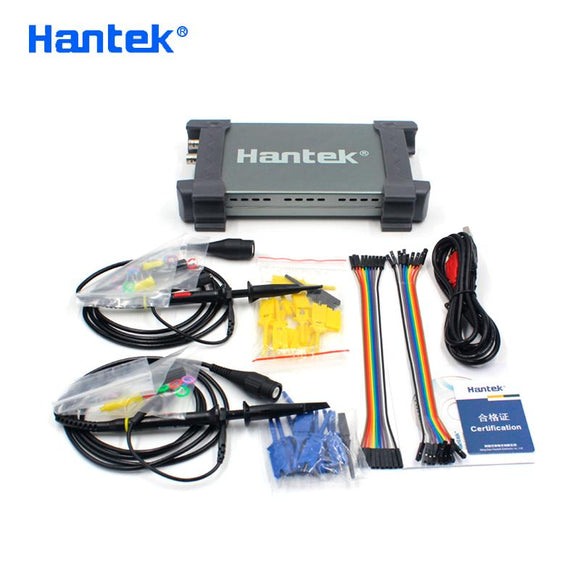

Package including
1 * 6022BL oscilloscope
2 * Oscilloscope probe
1 * USB cable
1 * jumper clip set (color is random)
2 * jumper cable
1 * CD(manual etc.)
