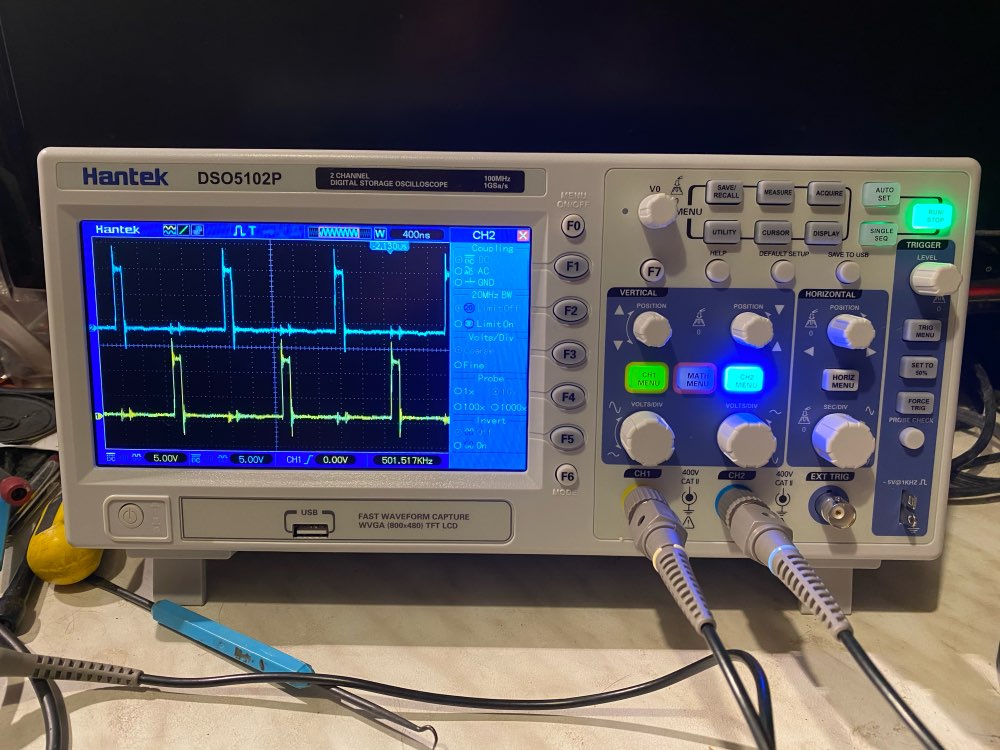

Digital Oscilloscope Hantek DSO5102P Portable 100MHz 2 Channels 1GSa/s Record Length 40K USB Osciloscopio 7 Inch

  • $309.00
    Unit price per

Only 35 left!

Item No. M99M38A
Weight: 3.5 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

Digital Oscilloscope Hantek DSO5102P Portable 100MHz 2 Channels 1GSa/s Record Length 40K USB Osciloscopio 7 Inch


Features:

  • 100MHz bandwidths
  • 2 Channels
  • 1GSa/s Real Time sample rate
  • Large (7.0-inch) color display,WVGA(800x480)
  • Record length up to 40K
  • Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
  • USB host and device connectivity, standard
  • Multiple automatic measurements
  • Four math functions, including FFTs standard
  • Provides software for PC real-time analysis
  • VGA Optional
  • Software Operating system: Windows NT, Windows 2000, Windows XP ,VISTA





Specifications:

  DSO5202P DSO5102P DSO5072P
Bandwidth 200MHz 100MHz 70MHz
Channel 2
Real-Time Sample 1GSa/s
Equivalent Sample 25GSa/s
Memory Depth 40K
Rise Time 1.7ns 3.5ns 5ns
Time Base Accuracy 50ppm
Time Base Range 2ns/div-40s/div 4ns/div-40s/div
Input Impendance 1M
VOLTS/DIV Range 2mV/div-5V/div
A/D Converter 8 bit
Position Range 50V(5V/div), 40V(2V/div-500mV/div),
2V(200mV/div-50mV/div), 400mV(20mV/div-2mV/div)
DC Gain Accuracy 3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2, EXT, EXT/5, AC Line
Math +,-,x,÷,FFT
Cursor Measurement Voltage difference between cursors: V;
Time difference between cursors: T;
Reciprocal of T in Hertz (1/T);
Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF
Display 7" TFT 16K Color LCD, 800*480 dots
Size 313mm x 108mm x 142mm
Weight 2.08KG
Standard Probe PP200x2 PP150X2 PP80X2

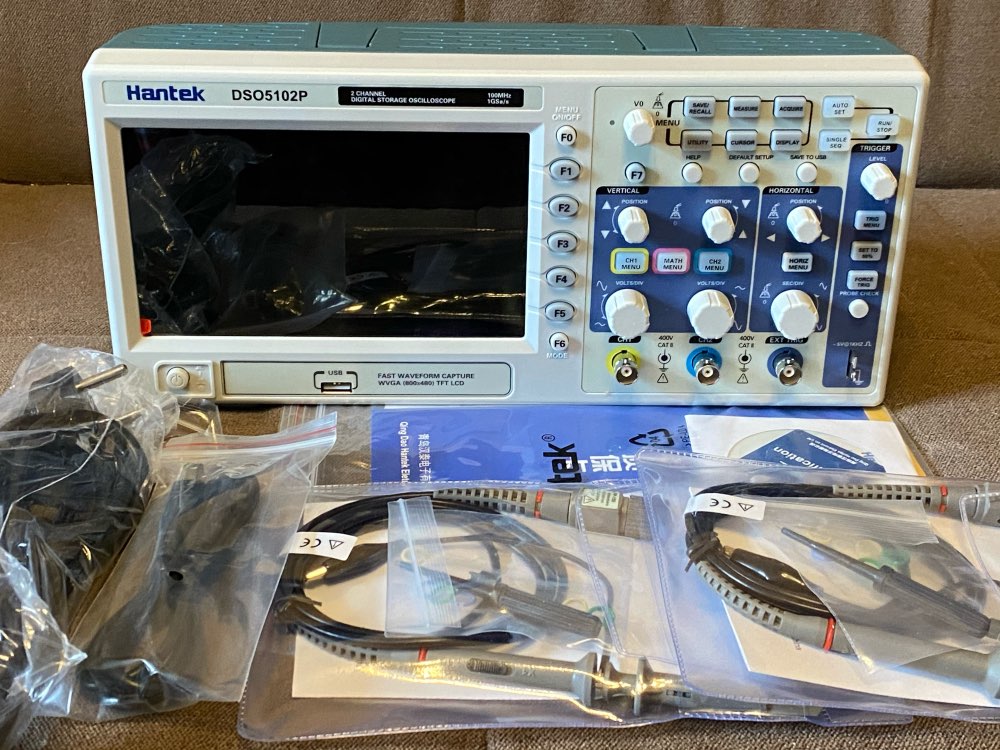

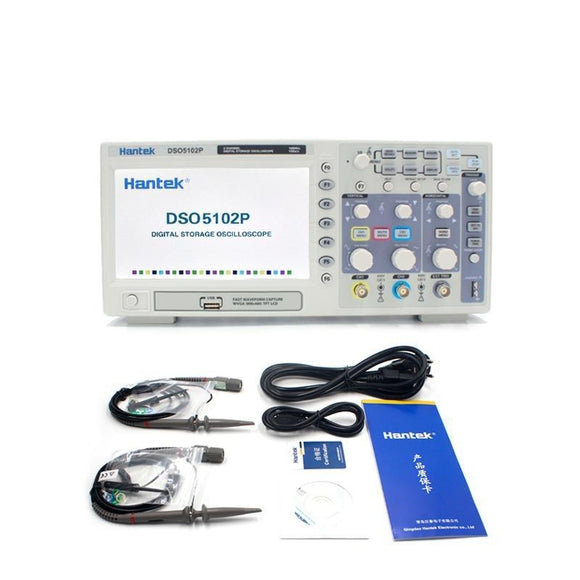

Package List:

  • 1 x 5102P Oscilloscope Host
  • 2 x Connecting Lines
  • 1 x USB Cable
  • 1 x Installation CD
  • 1 x Power line

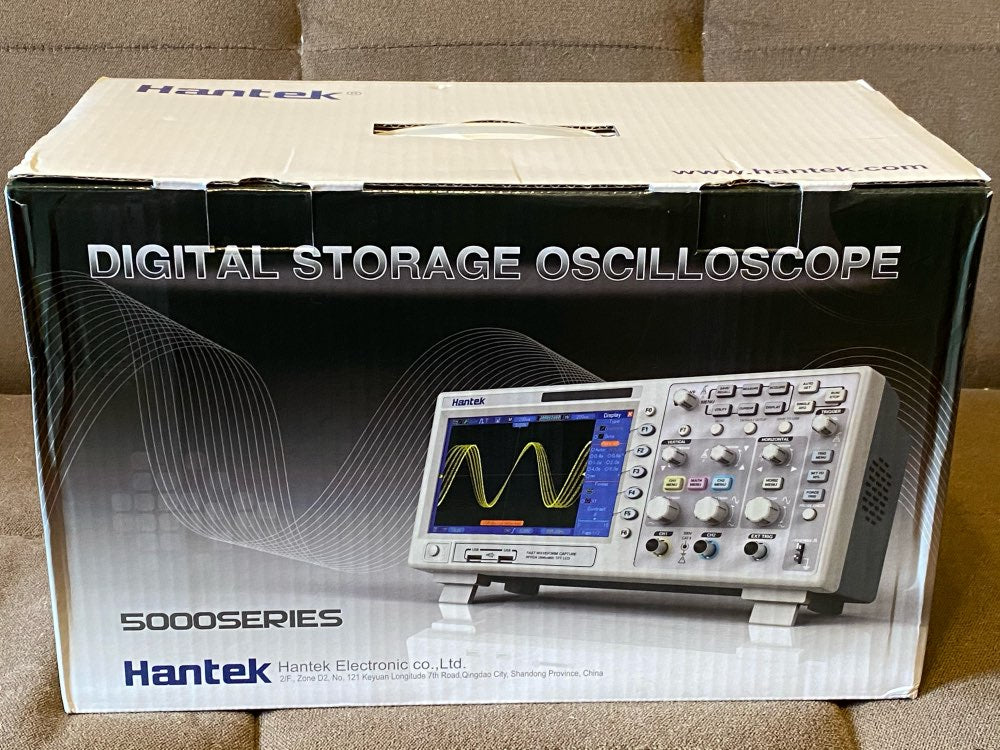

  • 1 x Original box
