Autel MaxiTPMS TS608 Complete TPMS & Full-System Service Tablet Equals TS601+MD802+MaxiCheck Pro Free Update Online for 2 Years
Product Description
Autel MaxiTPMS TS608 Complete TPMS & Full-System Service Tablet Equals TS601+MD802+MaxiCheck Pro
COMPLETE TPMS FUNCTIONS
1. Activate all known TPMS sensors and read sensor status;
2. Diagnose ECU for complete TPMS health check with DTC description;
3. Read DTCs from ECU and erase DTCs;
4. Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;
5. On-tool relearn procedure and wide OBD relearn coverage;
6. Toolkit, special TPMS functions;
ALL SYSTEMS DIAGNOSTICS
1. Read/clear codes for all available electronic systems;
2. Turn off warning lights;
3. Display live data in text, graph & analog for easy data review;
4. Supports all 10 test modes of the latest J1979 OBD II test specs;
5. Enhanced OBDII Mode 6;
ADVANCED SERVICE FEATURES
1. Relearn parking brake pad after replacement;
2. Reset Steering Angle Sensor (SAS);
3. Reset service mileage and service intervals;
4. Forced regeneration and adjusting injectors;
5. Support battery registration and reset;
6. Support IMMO functions;
Specifications
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Cortex-A9 processor (1.6 GHz) |
| Memory | 1GB RAM DDR3 & 32GB ROM |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0; |
| USB 2.0; | |
| Wi-Fi; | |
| HDMI Type A; | |
| Micro SD card slot (supports up to 32GB); | |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A; |
| Output: Beep; | |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery; |
| Charges via 5 VDC power supply; | |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | -10 to 60°C(14 to 140°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Net Weight | 885 g (2.31 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, |
| SAE-J1850 VPW, SAE-J1850PWM, | |
| ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), | |
| SAE J2610, GM UART,UART Echo Byte Protocol, | |
| Honda Diag-H Protocol, TP2.0, TP1.6 |

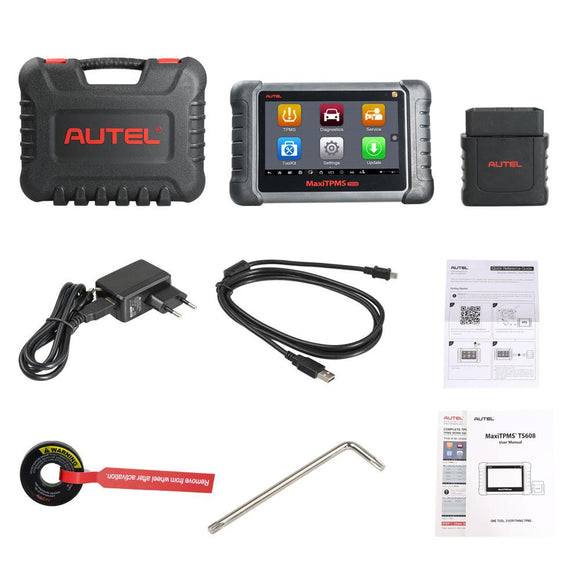

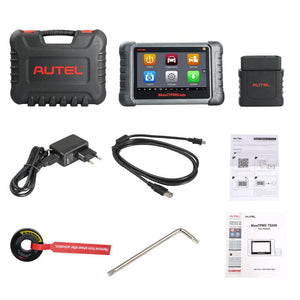

Package includes:
1pc x MaxiVCI Mini
1pc x USB Cable (for test) and Magnet
1pc x USB Cable (for charging)
1pc x USB External Power Adapter
1pc x Hex Key
1pc x User Manual
1pc x Quick Reference Guide
