Autel PowerScan PS100 Electrical System Diagnosis Tool

  • $115.00
    Unit price per

Only 45 left!
Item No. H62P12A Weight: 1.65 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

Autel PowerScan PS100 Electrical System Diagnostics

Autel PowerScan PS100 Generation Description:

Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery.

Autel PowerScan PS100 Functions:

1. Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
2. Test for continuity with its built-in auxiliary ground lead.
3. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
4. Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded.
5. Follow and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.

Autel PowerScan PS100 Description:

①Probe Tip–Contacts the circuit or component to be tested.
②Head  Lights –Illuminates  dark  work  areas  or  work  areas  at night. .
③Red/Green Polarity Indicator–Identifies positive, negative or open  circuits.
The  RED  Indicator  lights  when the  Probe  Tip  is contacting a positive circuit. The GREEN Indicator lights when the Probe Tip is contacting a negative circuit.
④LCD Display–Indicates test results.
⑤Circuit  Breaker  Reset –Resets  the  tool  when  the  Circuit Breaker is tripped。
⑥Power  Switch–Allows  you  to  conduct  a  positive  or  negative battery  current  to  the  tip  for  activating  and  testing  the  function of electrical components.
⑦Mode  Button–Selects the  work  mode:AC  voltage,DC voltage, resistance, tone.
⑧Speaker–When  the  audio  tone  is  turned  on,  a  beep  will  be heard.
⑨Auxiliary Ground Lead–Assists test as a ground lead.
⑩Adaptor –Connects to the battery

Autel PowerScan PS10 Work Mode:

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

DC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

AC Voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. voltage, frequency and duty cycle.

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

Tone On/Off
While the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off.

This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the audio could become annoying.

Autel PowerScan PS100 Specifications:

Display:     TFT color display (160 x 128 dpi)
Operating Temperature:   0 to 60°C (32 to 140°F)
External Power: 12.0 or 24.0 V power provided via vehicle battery
Length\Width\Height: 126mm(4.96")\46.5mm(1.83")\35mm(1.38")
NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb)




download power-scan-ps100-user-manual

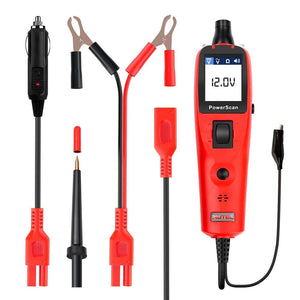

Autel PowerScan PS100 Package including:

1 × PowerScan PS100
1 × Rugged blow molded case
1 × 20ft. extension cable1 × Probe tip
1 × Battery hookup clips
1 × Cigarette lighter adapter
1 × User's Manual
