Autel MaxiTPMS TS508K Tire Pressure Monitoring System Reset TPMS Replacement Tool with 8pc Sensors

  • $399.00
    Unit price per

Only 80 left!
Item No. H62P38A Weight: 3.5 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

Product Description

The Autel TS508K (TS508 + 4PCS 315MHz Sensors + 4PCS 433MHz Sensors) is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs.Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
Autel MaxiTPMS TS508K TS508 Pre Tire Pressure Monitoring System Reset TPMS Replacement Tool

Autel TS508K Support Multi Language: English, French ,Spanish ,German ,Dutch,Swedish,Polish ,Korean ,Japanese, Italian

Autel TS508K Features:

Vehicle Specific Database (Domestic, Asian and European)
Auto Selection of Frequency for Fast Scanning
Two TPMS Service Modes to Use
Quick Mode for Fast Installs designed for tire / wheel shops
Advanced Mode To diagnose, repair and replace TPMS for repair shops
TPMS Status Screens for Easy Diagnosis
Shows ID matching in color
Low Sensor Battery Indicator
Code Notification
Information - relearn procedures at the touch of help button
Batch Programming - Program multiple sensors with one touch (up to 16 sensors at a time)
Programs vehicle ECU to learn sensor IDs and positions
Activates ALL magnetic, frequency and tire deflation triggered sensors using 125Khz continuous or modulated waive signals
Receives both 315MHz and 433MHz signals
Reads / writes sensor IDs from vehicle ECU
Reads / clears DTC's of TPMS and resets Malfunction Indicator Light
Programs Autel MX-Sensors 315MHz or 433MHz wirelessly
Checks Remote Keyless Entry (Key FOB) for transmissions
Reads Data including sensor IDs, tire pressure, temperature, battery condition.
OEM Part number and relearn information
Displays different sensor relearn procedures for different OEM sensors
OEM sensor information display based on vehicle Make/Model/Year
Displays OBD locations for test vehicles
Pre-selection process offers faster activation and diagnostics
Provides visual and audible responses to confirm sensors are working properly
On-screen code definitions
Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions
Proper LF signal to prevent being fooled by other RF signals
Built-in rechargeable 3.7 v Li-polymer battery
Automatic power-off to preserve battery life
Multilingual support: English, French, Spanish, etc.
Free Lifetime updates on the internet using USB port
Ergonomic design features strong housing and protective rubber boot
TFT Color Display (320 X 240 dpi)
8.0" LED Capacitive touchscreen with 1024 X 766P resolution

Autel TS508K Specification:

Battery Life: ≥5 years
Operating Temperature: -40°C to +125°C
Storage Temperature: -40°C to +150°C
Operating Humidity: 90%
Operating Frequency: 433 MHz
Pressure Monitoring Range: 100 to 900 kPa
Pressure Reading Accuracy: ±10 kPa
Temperature Reading Range: -40°C to +125°C
Temperature Reading Accuracy: ±5°C
G Sensor Reading Accuracy: ±15%
Transmission Power: 5-8 dBm
Battery: 3.0 V
Dimensions (W x H x D): 54.2 mm x 29.4 mm x 19.1 mm (Snap-in Sensor)
Weight (Without Valve): 15.6 g (Snap-in Sensor)

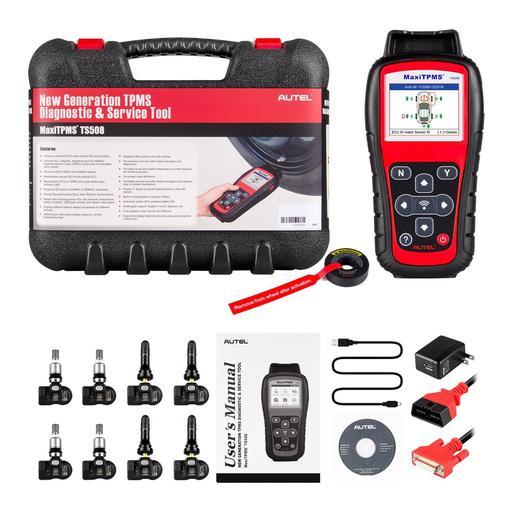

Package Included:

1 x MaxiTPMS TS508 TPMS Tool
1 x OBD II Cable
1 x USB Cable
1 x Magnet
1 x AC Adapter
1 x CD
1 x Carry case
1 x User manual
