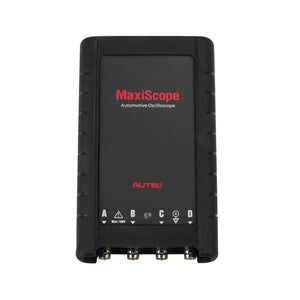

Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Basic Kit Works with Maxisys Tool

  • $559.00
    Unit price per

Only 50 left!
Item No. H62P91A Weight: 2.0 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

Product Description

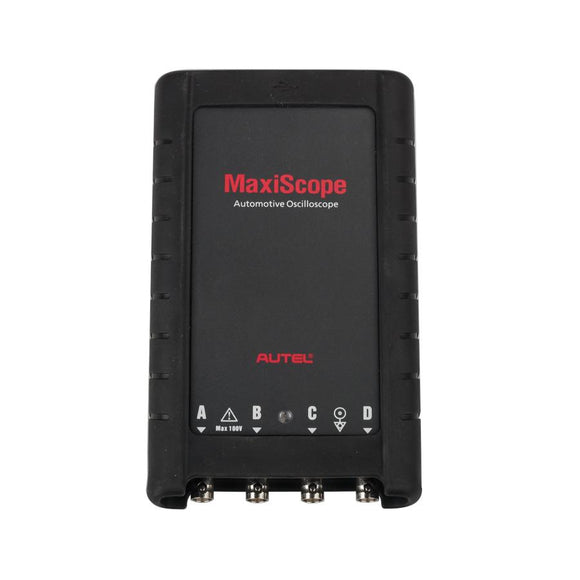

The MaxiScope MP408 is a PC based 4-channel automotive oscilloscope. It works in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool, providing you an insight to the inner workings of a vehicle’s electronic circuits.
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Basic Kit Works with Maxisys Tool

MP408 can work together with MS906BT, MS906TS, MAXISYS, MAIXSYS PRO, MAXISYS ELITE & Maxisys mini.

Featuring the user-friendly UI design combined with the unrivalled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.

Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Feature and Functions:

Features one-click auto setup of voltage scale and time base
Works on all makes and models of modern vehicles
Compatible with LIN, CAN and FlexRay data bus standards
Reads and displays electrical signals in high resolution waveforms
Allows manual editing of measurement parameter display
Records and plays back waveform data
Features color coded 4-channel control panel
Intuitive UI design features easy trigger point adjustment and real time scale info display
Direct power supply through USB connection
Free online software update through the Internet
Portable design with strong housing and protective rubber boot

How to Install MaxiScope MP408 PC Software?

1. Download the MaxiScope PC Suite from www.autel.com ->Products ->MaxiScope MP408 -> Downloads.
2. Unzip the downloaded file,and click setup.exe to install thesoftware,and then click Next to continue.
3. Click the Browsebutton, and select a destination folder to install the program, and? click Next to continue. Or directly click Next to continue without changing the default installation folder.
4. Click Install and the Setup.exe program will be installed onto the computer

Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Specifications:

Vertical resolution:12 bits
Channels:4
Bandwidth:20MHz
Accuracy:1%
Sensitivity:10mV/div to 20V/div
PC Interface:USB 2.0 – Cable supplied
Power Requirements:Powered from USB port
Input Ranges (full scale):±v50mV to ±100V in 11 ranges
Input Impedance:1MΩ in parallel with 22pF
Input Type:Single-ended, BNC connector
Input Coupling:Software selectable AC/DC
Overload Protection:±200V on single input
Buffer Memory:32M samples shared among active channels
Waveform Buffer:Up to 1000 waveforms
Timebase Ranges:100ns/div to 1000s/div
Operating Temperature Range:0°C to 50°C (15°C to 40°C for quoted accuracy)
Storage Temperature Range:-20°C to +60°C
Storage Humidity Range:5% to 95%RH, Non-condensing
Maximum Sampling Rate (Single Shot):
 -1 or 2 channels in use:80MS/s
 -3 or 4 channels in use:20MS/s

Package Including:

1pcs x Autel MaxiScope MP408 Interface
1pcs x Compact Disc (CD)
1pcs x 1.5m USB Cable
4pcs x 3m (10ft) Screened Test Leads
1pcs x Secondary Ignition Pickup
1pcs x 2-pin Breakout Lead
2pcs x Attenuators 20:1
1pcs x Large Crocodile Clip Set
1pcs x Small Crocodile Clip Set
1pcs x Acupuncture Probe Set
1pcs x Multimeter Probes
