XTOOL KC501 Mercedes Infrared Key Programming Adapter, Work with Xtool X100 PAD3/PAD Elite, H6 Elite, AutoPro PAD, A80 Pro

  • $639.00
    Unit price per

Only 20 left!
Item No. H73D20A-3 Weight: 3.5 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

Xtool KC501 Mercedes Infrared Key Programming Tool, Support MCU/EEPROM Chips Reading&Writing ,Work with Xtool X100 PAD3

Highlights of Xtool KC501

♦.Read and write keys
KC501 support read and write keys,support read key remote frequency as well as generate dealer's key

♦.Read and write MCU/EEPROM Chips

♦.Read and write Mercedes Infrared Keys

♦.KC501 Support PC Connection or tablet

♦.Generate Dearler Keys

♦. Read remote frequency

♦. Support 124 kind of EEPROM, 7 MCU、11 ECU

♦. Can work with Xtool PAD3 , H6 Elite, H6EB, NITRO LT, AutoPro PADS, X100 PAD Elite, A80 Pro, A80 Pro Master, NITRO XT, NITRO GT, AutoPro PAD Elite


KC501 Functions

►Support registers, microcontrollers, key programming and other types of chips read/write, anticipate and other functions;

►Support key automatic identification, partial key reading, key generation, key reading information, key check, key unlock and other functions;

►Can be put in use with tablets for immobilization.

►EZS for Mercedes Key Programming



Xtool KC501 Features

1.Powerful Function for Chip Reading and writing

KC501 supports reading, writing, erasing and other functions of various chips such as registers, microcontrollers, anti-theft, etc., and supports more than 120 EEPROM, 7 MCU, and 11 ECU read and write functions.

2.Full-Featured Key Programming Function
It supports automatic key recognition, partial key reading and writing, key generation, key information reading, key check lock, key unlock and other functions.

3.Compatible with multiple devices, expanding anti-theft matching
It can be connected to the tablet as an anti-theft match, and supports the connection of X100 PAD3

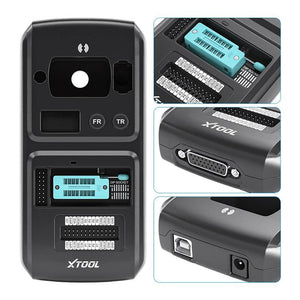

Xtool KC501 Interface Instruction

1. DC Port: It provides 12V DC power supply.
2. USB Port: It provides data communication and 5V DC power supply. (The Type B USB port provides data communication and power supply for our device, PC and KC501.)
3. DB 26-Pin Port: It connects with the Mercedes Benz infrared cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins: It holds the MCU board, MCU spare cable or DIY signal interface. (The Cross-shaped signal pin is used to place MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.)
5. Locker: It locks the EEPROM component transponder slot to ensure proper functioning. (It is used to place EEPROM chip or socket to read or write EEPROM data.)
6. EEPROM Component Transponder Slot: It holds the EEPROM plug-in transponder or EEPROM socket.
7. Status LED: It indicates the current operating status.
8. IC Card Induction Area (It is used to read and write IC card data.)
9. Display Screen (It is used to show remote frequency or transponder ID.)
10. Remote Frequency Button (Press this button to show remote frequency in the display screen.)
11. Transponder ID Button (Press this button to show transponder ID in the display screen.)
12. Transponder Slot: It holds the transponder. (It is used to hold the transponder to read or write transponder data.)
13. Vehicle Key Slot: It holds the vehicle key. (It is used to hold the vehicle key to read or write vehicle key data.)
14. Remote Control Transponder Induction Area (It is used to read and write remote control transponder data.)
15. Mercedes Infrared Key Slot: It holds the Mercedes infrared key. (It is used to hold Mercedes infrared key to read or write Mercedes vehicle key data.)



Display Screen:320x480 dpi TFT Colorful Screen
Working Voltage:9V-18V
Working Temperature:-10℃-60℃
Storage Temperature:-20-60℃
Power supply:12V DC
Appearance Size:177 mm* 85 mm* 32 mm
Weight:0.32 KG


Package List

KC501 Key & Chip Key Programmer



Charger (With Power Supply Cable)

Benz Infrared cable



XTA001 Clamp

IC Clamp





EEPROM Adaptor (With bracket)

XTA002 Clamp

XTA003 Clamp

26 PIN Cable

24AWG Cable

Tool Case
