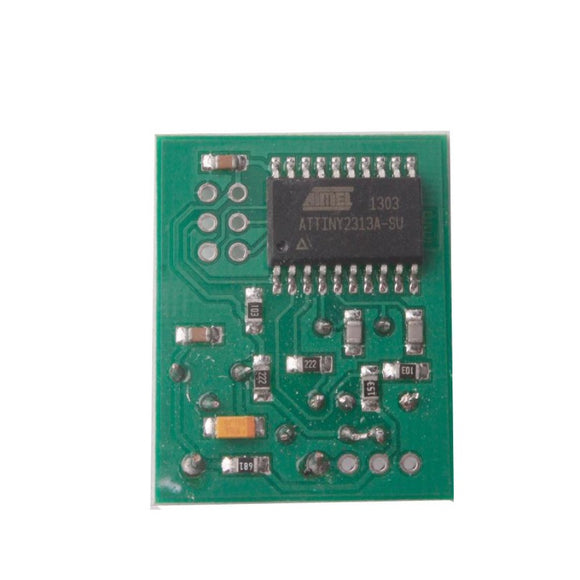

VAG IMMO Emulator For VW Audi Immobilizer

  • $13.00
    Unit price per

Only 49 left!

Item No. Y99E014
Weight: 0.08 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

VAG IMMO Emulator for VW Golf III, Passat B4, VW Sharan 98,Lupo 98,Polo 98, T4, VW LT35,Audi 100, A6, A4, A8,VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6 and TT.



Connection Diagram:



For cars with separated immobilizer box, short W and K lines and remove immobilizer box.
For cars with dashboard immobilizer, cut W line from dashboard


VW Golf III, Passat B4 Immobilizer Box Side

VW Sharan 98, Lupo 98, Polo 98, T4 Immobilizer Box Side

VW LT 35 Immobilizer Box Side


Audi 100, A6, A4, A8 Immobilizer Box Side

VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6, TT


GND --- Dashboard Blue connector pin 24
K --- Dashboard Blue connector pin 25
W --- Dashboard Green connector pin 5
IGN +12V --- Dashboard Blue connector pin 1
