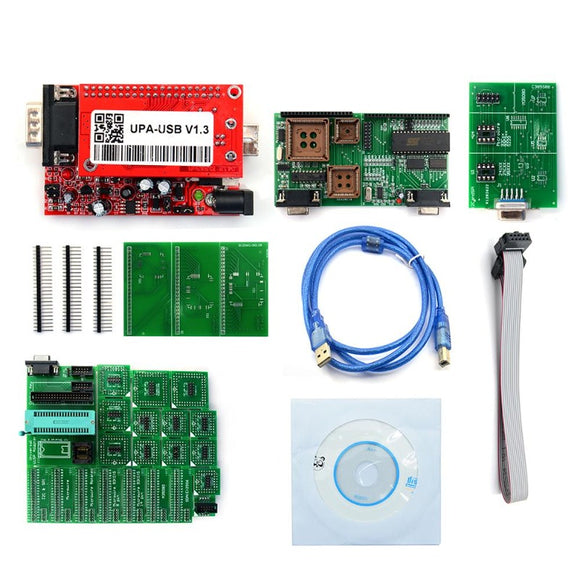

UUPA USB V1.3 UPA Programmer Include 24pcs Aadaptors with NEC TMS Adapter

  • $105.00
    Unit price per

Only 50 left!

Item No. P99P030-4
Weight: 0.9 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

UUPA USB V1.3 UPA Programmer Include 24pcs Aadaptors with NEC TMS Adapter


language: English.

HW Version: 2018

SW Version:V1.3

Product introduction:

UPAUSB HW2018 SW1.3 FULL version with Special TMS and NEC adapters is the full set with all

adapters, The main Device can be directly connected to the software we offered (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable.

It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as

with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.

Device configuration is done over special config keys which make the work convenient and

safe compared to wiring up all manually.Additional packages can be covered by commonly

available Adapters plugged into the 40 pin ZIF socket.

The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be

connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are

to be put directly over the soldered chip of the target device making the work convenient and safe

compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP

target can be enabled or disabled by a jumper next to the 10 pin ISP connector)



UPA-USB Device Programmer HW2018 SW1.3 Improvement

1. Added MC9S12HY64/HA32 support

2.Added Serial Flash memory support: A25L512/010/020/040/080/016/032,

SST25VF512A/010A/020B/040B/080B/016B/032B, S25FL004A/008A/016A/032A/064A

3. Added 24C1024, 24C1025 support

4. Added Bulk erase data memory to PICs 16F913-7/946, 12F629/675

5.Added script function GetPage

6.Added script function AutoBaudRateDevice (hc08 devices only)

7.Added script function GetProgrammerFrameChildCtrl( AChildCtrlName: string): TControl

8. Added script function EnablePicMemoryAreas( AProgram, AID, AConfig, ACalibration, AEEPROM: boolean ): boolean;

9. Fixed bug with script functions ProgramDevice, ReadDevice ... when used with PICs

10. Fixed bug with SetHC08SecurityBytes(SecBytes: string) function

11. Fixed bug with 68hc11 reading if Oscillator is not set to Auto

12.Updated script example files

13.The software is digitally signed

14.One clip, 3 new adapters added

15.USB driver upausb.sys is digitally signed and can be used with 64-bit windows XP/Vista/7



EEproms:

Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female

extension cable (1:1). Insert the correct config key into the slot of the mainboard and start

programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin Flat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.

Motorola MCU's

Pick the Adapter you want to use, attach the flat cable to the Adapter (PIN1 is always indicated,

on both the cable and also the Adapter) and also to the main board's 10pin ISP connector.

Select the VCC supply source by the jumper on the mainboard next to the ISP connector

(on = target supplied from upa, off = target got own supply). Slide the Adapter over the soldered

PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no pin counting, saves lots of

time and hassle and let's you make your job faster, precise and easier)

Once your workshop is equipped with our Adapter Set you will have a all new UPA Experience.



STMicroelectronics ST62*:

ST6240, ST6245, ST6249 NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9),

CR16MFS5(9), CR16MCT5/9, CR16HCT5/9 for Motorola HC05*: MC68HC05B6,

MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6,

MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,

MC68HC05X16, MC68HC05X32 for Motorola HC08*: MC68HC08AS20,

MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A,

MC68HC908AZ60, MC68HC908AZ60A for Motorola HC11*: MC68HC11A1,

MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1,

MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2,

MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8 for

Mot-rola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60,

MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A for

Mot-orola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256,

MC9S12H128, MC9S12H256 Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53,

AT89S8252, AT89S8253 Atmel AVR 8Bit Risk: AT90S1200, AT90S2313, AT90S2323,

AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8,

ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103,

ATmega128, ATtiny12, ATtiny15, ATtiny2313 Microchip PIC12: PIC12F508, PIC12F509,

PIC12F629, PIC12F675 Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A,

PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819,

PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A),

PIC16F874(A), PIC16F876(A), PIC16F877(A) EEP
