Throttle Body Pigtail for GM 6.0L LQ9 (03-07)
Throttle Body Pigtail for GM 6.0L LQ9 (03-07)

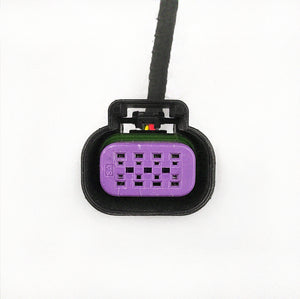

Connector Pinout Details
Pin Wire Function
A 18ga YEL TAC Motor Control - 1
B 20ga BLK/WHT TP Sensor 2 Ground
C 18ga BRN TAC Motor Control - 2
D 20ga BLK TP Sensor 1 Ground
E 20ga LT BLU/BLK TP Sensor 2 Power (5V)
F 20ga PPL TP Sensor 2 Signal
G 20ga DK GRN TP Sensor 1 Signal
H 20ga GRY TP Sensor 1 Power (5V)
