Worked Model:
1. Older BMW(1996-2004) E38 E39 E46 E53 E83 and similar where direct connection to AIRBAG ECU takes place. NOT working where seat modules are connected directly to K-BUS.
OCCUPIED:
Jumper 2 SHORTED
Jumper 1 SHORTED
NOT OCCUPIED:
Jumper 2 SHORTED
2. Mercedes Benz (1997 2001) TRW Airbag unit A-class W168, C-class W202, Vito W638, ML etc.
OCCUPIED:
Jumper 3 SHORTED
Jumper 1 SHORTED
NOT OCCUPIED:
Jumper 3 SHORTED
3. Mercedes Benz (2000 2004) A-class W168, C-class W203, CLK W209, Vaneo, E-class W210, S-class W220, Vito W639, ML W163 etc.
OCCUPIED:
Jumper 4 SHORTED
Jumper 1 SHORTED
NOT OCCUPIED:
Jumper 4 SHORTED

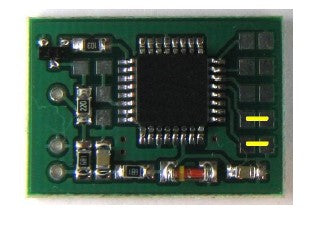

By default device is shipped in mode BMW, OCCUPIED as pictured:
