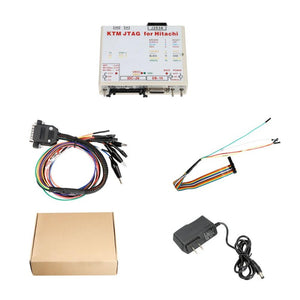

PowerBox KTM JTAG for Hitachi for PCMflash KTMflash ECU Tuning Programmer

  • $49.00
    Unit price per

Only 49 left!
Item No. J99E011 Weight: 0.4 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

KTMflash ECU Programmer & Transmission Power Upgrade Tool Supports V-A-G DQ200 DQ250 Infineon Bosch & 271 MSV80 MSV90 with Dialink J2534 Cable

Read the chip data, read and write ECU data, read transmission data etc at a high speed.

KTMflash Functions:
1.Read the Chinese car via OBD.
3.Read the BOOT mode according to the chip model
4.Read the encrypted ECU password (Read the password of encrypted ECU first, then read data)
5. Support cars made in China with ME17 TC1728/1767 for data reading & writting and password reading.

Workable Transmission Model:
VAG: DQ200 (0AM)
VAG: DQ200MQB/G2 (0CW)
VAG: DQ250C (02E) K-Line
VAG: DQ250E/F (02E)
VAG: DQ250MQB (0D9)
VAG: VL300/V30 (01J/0AN) K-Line
VAG: VL300/V30 (01J/0AN)
VAG: VL381 (0AW)
VAG: DQ500 (0BH/0BT)
VAG: DL501/G2 (0B5)
VAG: DQ200/MQB Boot (MICRO)
VAG: DQ200/MQB Boot (EEPROM)
VAG: DQ200G2 Boot (MICRO)
VAG: DQ200G2 Boot (EEPROM)
VAG: DQ250E/F/MQB Boot (MICRO)
VAG: DQ250E/F/MQB Boot (EEPROM)
VAG: VL300/V30 BSL (FLASH)
VAG: VL300/V30 BSL (EEPROM)
VAG: VL381 Boot (MICRO)
VAG: VL381 Boot (EEPROM)
VAG: DL501 Boot (MICRO)
VAG: DL501 Boot (EEPROM)
VAG: DL501G2 Boot (MICRO)
VAG: DL501G2 Boot (EEPROM)

Read Chinese car via OBD:
China: Chery, Great Wall, Lifan, SAIC ME17 (ME17.8.8)
China: Chery, Great Wall, Lifan MT80 K-Line Calibration (Delphi MT80)
China: Chery, Great Wall, Lifan MT80 CAN-bus (Delphi MT80)

Read the BOOT mode according to the chip model:
Infineon: TC1762/TC1766 MICRO (1504KB)
Infineon: TC1762/TC1766 EEPROM (32KB)
Infineon: TC1792/TC1796 MICRO (2048KB)
Infineon: TC1796 MICRO+EXT (4096KB/6144KB)
Infineon: TC1796 EXT (2048KB/4096KB)
Infineon: TC1796 EEPROM (128KB)
Infineon: TC1792 EEPROM (64KB)
Infineon: TC1738/TC1767 MICRO (2048KB)
Infineon: TC1738/TC1767 EEPROM (64KB)
Infineon: TC1797 MICRO (4096KB)
Infineon: TC1797 MICRO+EXT (6144KB/8192KB)
Infineon: TC1797 EXT (2048KB/4096KB)
Infineon: TC1797 EEPROM (64KB)
Infineon: TC1724/TC1728 MICRO (1536KB)
Infineon: TC1724/TC1728 EEPROM (64KB)
Infineon: TC1782/TC1784 MICRO (2560KB)
Infineon: TC1782/TC1784 EEPROM (128KB)
Infineon: TC1793/TC1798 MICRO (4096KB)
Infineon: TC1793/TC1798 MICRO+EXT (6144KB/8192KB)
Infineon: TC1793/TC1798 EXT (2048KB/4096KB)
Infineon: TC1793/TC1798 EEPROM (192KB)

Read the encrypted ECU password (Read the password of encrypted ECU first, then read data):
Bosch: Support Chinese car ME17 TC1728/1767 data reading & writing and password reading
Bosch: BMW/MB/VAG GPT
Bosch: Ford/Opel/Volvo GPT
Bosch: BMW TPROT8+
Bosch: VAG TPROT8+
Bosch: Kia/Hyundai/Honda TPROT8+
Bosch: Chrysler/Jeep/Dodge/Fiat TPROT8+ [Test]
Bosch: VAZ/UAZ ME17.9.71
Continental: Kia/Hyundai/SsangYong SIM2K-24X/C201
Continental: Ford EMS2204
Continental: Ford EMS2207
Continental: Ford EMS2211
Continental: Ford SID208
Continental: Ford SID209
Continental: Ford Mondeo 4 SID807EVO
Continental: Ford Focus 3/Transit Connect SID807EVO
Continental: Citroen/Peugeot SID208
Kia/Hyundai: Delphi MT86 EEPROM (16KB)
Mercedes-Benz: Delphi CRD3.1 EEPROM (32KB)



PowerBox

The PowerBox for PCMflash switching device is designed to connect the control unit to the on-the-table software downloader and automatically (if the bootloader and J2534 adapter supports) or manually switch the supply voltages and generate RESET, BOOT, CNF1, GPT1, GPT2, WATCDOG signals.

Automatically compatible with boot loaders, which are used to control:

BOOT – OEM12, 12 contact OBD-II.

Power Management – L-LINE, 15 OBD-II pin.

The Tool has built-in current limiting resistors on the following signal lines:
RESET — 510 Ω;
BOOT — 510 Ω;
CNF1 — 220 Ω.
