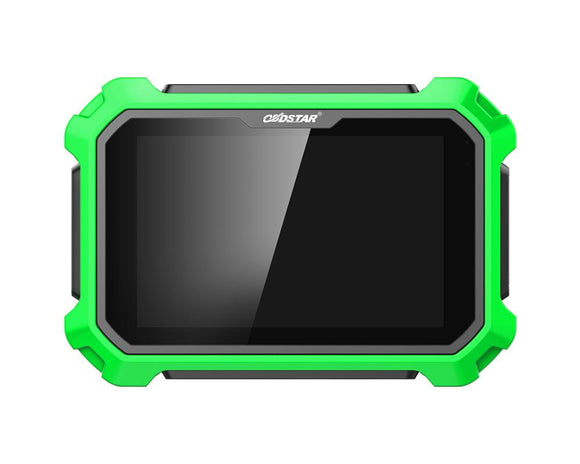

OBDSTAR Key Master DP Plus (X300DP Plus) Full Immobilizer A Package

$1,399.00
Unit price per

Quantity

Only 49 left!

Item No. LI61M05A-1 Weight: 8.0 kg

Estimated: Free Standard Shipping 7-15 working days.
Expedited Shipping 3-6 working days.

Description

OBDSTAR Key Master DP Plus (X300DP Plus) Full Immobilizer A Package

TECHNICAL PARAMETER

● Operation system: Android 5.1.1
● CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
● Battery: 3700mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Memory capacity:1GB
● Storage capacity: 32GB
● LCD: 8.0 inch
● LCD resolution: 1280*800
● Touch screen: Capacitive touch screen
● Camera: 5 mega rear view camera
● Wi-Fi: supported
● Working temperature: -10℃ ~ 55℃（14℉ ~ 131℉ ）
● Storage temperature: -20℃ ~ 70℃（-4℉ ~ 158℉ ）
● Weight: about 1.0 Kg
● Dimension: 254mm*174*mm*35mm

CONFIGURATIONS
A Package (Immobilizer version):
Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)

B Package (Odometer Correction version):
Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

C Package (Full version):
Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

Different among OBDSTAR Key Master DP Plus C Package (Full Version), A Package and B Package:

Remark
			A package	B package	C package
Immobilizer / Remote programming	European cars	VW/Audi/Skoda/Seat (Standard)	√	√	√
		VW/Audi/Skoda/Seat (Advanced)	√	√	√	add NEC 24C64 2014-key programming.
		BMW (Standard)
		BMW (Advanced)	√	√	√	Add FEM/BDC key programming, ISN code reading etc.
		Volvo	√	√	√
		The other European cars	√	√	√
	Asian cars	Hyundai /Kia (Standard)
		Hyundai /Kia (Advanced)	√	√	√	Add 47/8A/46 smart key pin code reading
		Toyota /Lexus (Standard)
		Toyota /Lexus (Advanced)	√	√	√	For Middle east cars, it adds H chip all keys lost (Immo box reset)
		The Asian cars	√	√	√
	North American cars	Ford(Standard)
		Ford (Advanced)	√	√	√	Add Ford after 2015 key programming functions, I.E: Mobdeo,Edge,Taurus,Escort,EVEREST,Explorer,F-150 SVT Raptor,Mustang,Lincoln MKZ, MKC and Continental 2015 - etc.
		GM(Standard)
		GM(Advanced)	√	√	√
		The other American & Chinese cars	√	√	√	Can perform BMC pin code reaing on these cars: -2017 Lacrosse,Lacrosse, Trax,Envision, GL8,MALIBU,AVEO,Excelle before 2015,Cruze etc.
Cluster Calibration		All cars cluster calibration		√	√
		4-system diagnosis				Engine, Transmission, ABS, airbag reset
OBDII Diagnosis		Full functions diagnosis			√	Full-system all-cars diagnosis
Special function		Oil service reset			√	Reset the Oil Service Light on
		Manual remote setting				Some cars only supports manual remote setting.
		ABS bleeding			√	After replace the ABS pump and related components.
		Battery matching			√	After the battery is changed, you need to match the battery.
		ECU programming			√
		The car with EPB replace brake pads			√	Electronic Parking Brake release
		Throttle programming			√	Used to clear the learning value after cleaning the throttle, otherwise it will cause high idle speed.
		Airbag reset			√	Used to clear airbag ECU collision data after a vehicle collision, otherwise the ECU cannot be reused
		TPMS reset			√	Used for reset after tire pressure alarm
		Steering angle reset			√	Replacement of data lost after steering angle change or power off
		OBDII Engine			√	Used to diagnose the car with OBD protocol.
		DPF Regeneration			√	Diesel Particulate Filter Operational
		Injector coding			√	Used to match and code the injector after replacement
		Suspension match			√	Used to match and set the suspension after adjusting.
		Gear learning			√	Used to learn the crankshaft position sensor after power off (only the domestic vehicle equipped with the Delphi system has this function)
		CVT learning			√	Used to reset the learning value after maintenance of CVT transmission
		EEPROM			√	Read and write the eeprom; read 8-pin IC chip password and reset some models anti-theft
		Key Renew			√	Renew the used keys to solve the problem that used keys cannot be matched to other models
		Steering angle repair			√	Used for the repair of lost data of vehicle steering angle sensor
		ECU Clone			√	Used for copying the program when replacing the new/second-hand computer.
		Switch activation			√
Hardware		P001 Programmer unit	√	√	√
		C001 circuit board	√	√	√
		C002 circuit board	√	√	√
		W001 data cable	√	√	√
		W002 data cable	√	√	√
		W003 data cable	√	√	√
		Toyota smart key emulators	√	√	√
		Remote Tester	√	√	√
		Anti-theft Induction coil	√	√	√	Used to test if the coil can send out the transmit signal.
