Barracuda VAG MQB JCI (includes all supported clusters)

Barracuda VAG MQB JCI (includes all supported clusters)

  • $355.00
    Unit price per

Only 100 left!

Item No. E70P01A
Weight: 0.0 kg
Estimated: Free Standard Shipping 7-15 working days.
                      Expedited Shipping 3-6 working days.

SKODA
MQB SKODA Octavia  - Johnson Controls 5E0 920 781
MQB SKODA Octavia A7 - Johnson Controls 5E0 920 851 A
MQB SKODA Octavia  - Johnson Controls  Visteon 5E0 920 861 A/E

VW
MQB VW Passat  - Johnson Controls 3G0 920 741
MQB VW Passat  - Johnson Controls 5G1 920 741
MQB VW Passat  - Johnson Controls 3G0 920 861
MQB VW Passat  - Johnson Controls 3G0 920 861 A


Description
The system allows to calibrate mileage and add keys to includes all supported clusters which are listed above.


What are the requirements?
System requirements for dashboard calibration
Barracuda programmer
Barracuda adapter set JTAG
Activation Barracuda VAG MQB JCI Licence
J2534 PassThru OBD Adapter
EEPROM programmer (Orange-5 or similar)
Vehicle must have at least one working key

System requirements for key addition

Barracuda programmer
Barracuda adapter set JTAG
Activation Barracuda VAG MQB JCI Licence
J2534 PassThru OBD Adapter
EEPROM programmer (Orange-5 or similar)

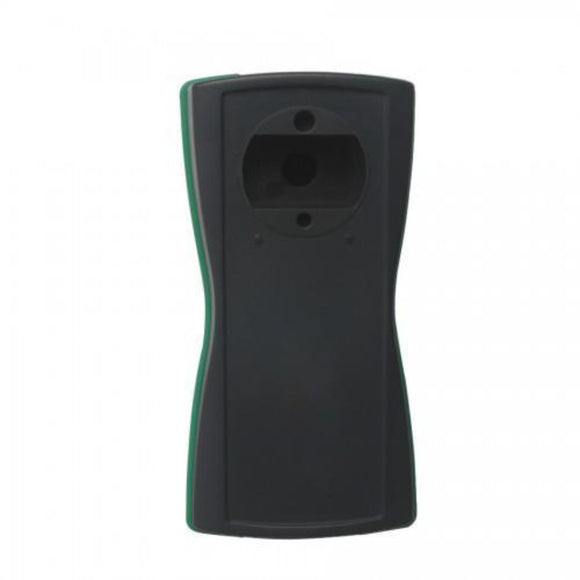

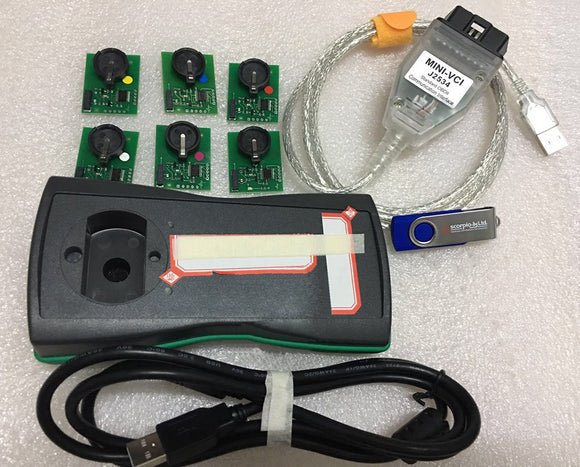

Tango programmer
Vehicle must have at least one working key

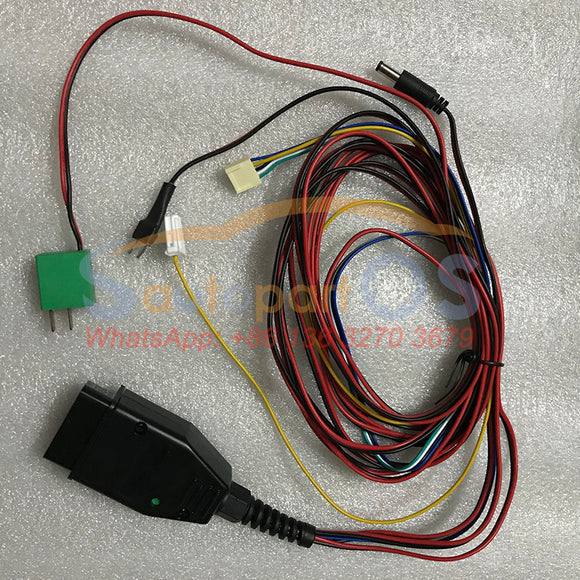

Barracuda Adapter JTAG
Adapter set JTAG includes cable.



J2534 PassThru OBD Adapter
The software uses the Pass Thru adapter to communicate with the car's network.Our company neither manufactures nor sells the Pass Thru adapters. Pass Thru adapters are quite common and there are many different manufacturers worldwide. Usually there are no special differences between all these adapters.Each manufacturer supplies a driver for its adapter. The driver is suitable for adapters of this manufacturer. The drivers and adapters are not interchangeable along all manufacturers.
You should avoid assigning a driver of one manufacturer to an adapter of another manufacturer.Barracuda software allows user to assign any of installed drivers to his adapter, but this does not mean that the wrong assign will operate correctly.
1). Install the driver as required and supplied by the adapter manufacturer.
2). Make sure that Windows OS administrator privileges are given to Barracuda.exe.
3). Launch Barracuda.exe (physically adapter is not needed).
4). Select ECU Maker -> Skoda - > Instrument Cluster.
5). Press PassThru Settings


6). If PassThru drivers are correctly installed the following Window will appear




7). In the example used multiple PassThru adapter drivers are installed on the system.
8). Select the driver corresponding to the adapter you intend to use
9). Once selected press OK. Barracuda software will continue use the selected driver.
If you want to use a different adapter its driver have to be selected.

If no drivers are installed or are not compatible with the Windows OS you are using, the following error message will appear and selection menu will be empty (NONE)


Interface Overview




How to use?
Step 1: Dashboard Calibration


Step 2: Key Addition & Write Key Directly
