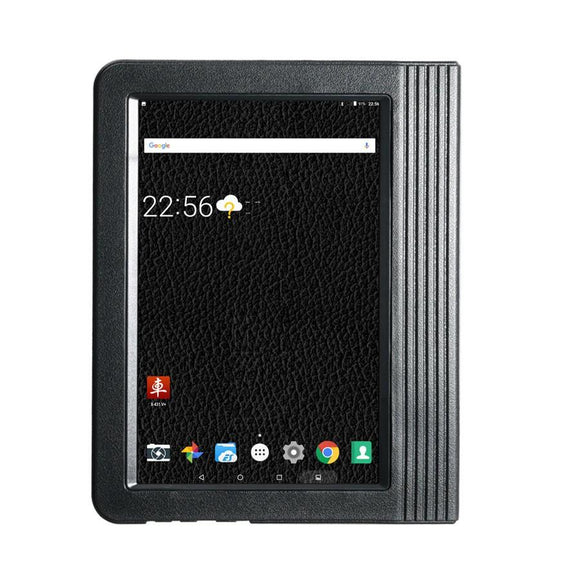

X431 PRO3 Launch X431 V+ Wifi/Bluetooth Global VersionFull System Scanner
Top 8 Reasons to Get Launch X431 V+:
1. Supported Languages: English, Spanish, Arabic, French, Korean, Japanese,German, Russian
2. 10.1 inch multi touchcapacitor screen give you better view for diagnose and data stream.
3. Wi-Fi & Bluetooth Supported
4. One click update: You do not have todownload software to memory card anymore, can do one click update directlythrough your machine.
5. There is User Manual in the Multiplexer, you can check it when you use the device. It is in"cnlaunch" file
6. Two Years Free Update Online, Dealer Code: 86A or 86K. After Two Years, It Cost450usd/year, if you don't want to update, the old software can stillwork too
7. Oversea full configuration contains total 59softwares,See attached configuration Software List
8. No Software download IP limitation: Oversea download and update available
Notice:
When you receive the device, contact our customer sevice and advise the Serialnumber of your device, also the language and country you want to openauthorization,after authorization finished, then you can log on Launch DBSCar Website to register CCaccount and download software you want
What are the advantanges of X431 V+?
1. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.
2. 1GB memory and 8GB storage for data.
3. Contain 72 car brand from USA, European, Asia and soon.
4. Support wifi/bluetooth and one click update, make yourupdate job much easier.
5. 6600mAh Li battery can let you continue work 8 hours.
6. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.
7. Original goods with full time technical service andguarantee.
8. 10.1 inch multi touch capacitorscreen give you better view for diagnose and data stream.
X-431 V+ Description:
X-431 V+ is taking the advantage of mobile internet, canshare maintenance data and case library, provide instant maintenanceinformation, and build public and private maintenance social circle,etc.,thuslead to wide car diagnostic community.
It is a typical diagnostic device contributed by Launchto diagnostic industry concerning internet application.
X-431 V+ Product Features:
Panel PC: High configuration of hardware , fast runningspeed
Capacitor Screen: Multi-touch capacitor screen, moresmooth operation
WIFI Diagnosis: Wireless communication betweenintelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easycarry
Optimized Interface: Brand new operation interfacedesign, interface more friendly and operation much easier
Wifi communication: Support WIFI network
Android System: Users can install and Android software
Numerous Additional Functions: Photo, video, multimedia,other software application,etc.
X-431 V+ Product Parameters:
Pannel Computer Parameters:
CPU: HUAWEI HiSilicon Quod-core 1.2G HZ
Screen:10.1 inch Multi touch capacitor Screen
Screen Resolution:1280X800
Operation system:Android4.0
Memory:1G
Storage:8GB
Battery:Polymer Lithium-ion battery, 6600mAh
Camera :0.3Mpixels front , rear 3.2Mpixels
Operating Temperature :0°C~+45°C
Storage Temperature :-10°C~+45°C
DBSCar Connector Parameters:
Connection: Standard OBDII Interface, Micro USB 2.0
Typical Power Consumption:(12V)Static current 25 mA,
overall unit average current 35 mA
Working Temperature: - 20 °C~6 0°C
Storage Temperature: -30°C~70°C
Working Voltage: powered by vehicle battery, DC 9V-15V
Package List:
Main Unit:
1pc x X431 V+ American host, RoHS
Connectors:
1pc x Android edition diagnostic connector (10 metersBluetooth)
1pc x BENZ-38 diagnostic connector
1pc x DAEWOO-12 diagnostic connector integrated
1pc x AUDI-4 diagnostic connector linear
1pc x BENZ-14 diagnostic connector linear
1pc x BMW-20 diagnostic connector integrated
1pc x CHRYSLER-6 diagnostic connector integrated
1pc x DAIHATSU-4 diagnostic connector linear
1pc x FIAT-3 diagnostic connector linear
1pc x FORD-6+1 diagnostic connector integrated
1pc x GAZ diagnostic connector linear
1pc x GEELY-22 diagnostic connector integrated
1pc x GM/VAZ-12 diagnostic connector integrated
1pc x HONDA-3 diagnostic connector integrated
1pc x KIA-20 diagnostic connector integrated
1pc x MAZDA-17 diagnostic connector integrated
1pc x MITSUBISHI/HYUNDAI-12+16 diagnostic connector
1pc x NISSAN-14+16 diagnostic connector
1pc x SSANGYONG-14 diagnostic connector linear
1pc x SSANGYONG-20 diagnostic connector integrated
1pc x SUBARU-9 diagnostic connector integrated
1pc x SUZUKI-3 diagnostic connector linear
1pc x TOYOTA-17 diagnostic connector integrated
1pc x TOYOTA-22 diagnostic connector integrated
1pc x UNIVERSAL-3 diagnostic connector linear
Test Cable:
1pc x OBDII -16 extension 135mm, RoHS
1pc x OBD I Adaptor BOX switch wiring
1pc x LIGHTER
1pc x CLIPPER
Accessories:
1pc x MicroSD card, SanDisk 32G capacity, RoHS
1pc x X431 PIN envelope
4pcs x Clipper fuse 5*20mm
2pcs x Lighter fuse 6*30mm
